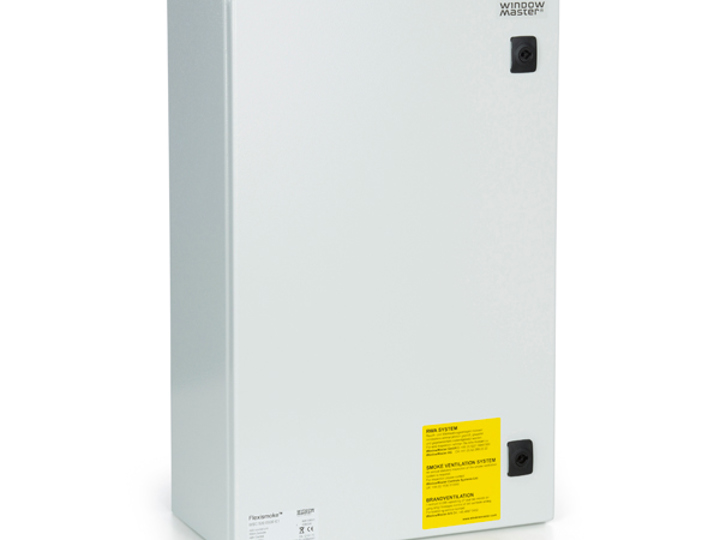

FlexiSmoke™ 20A smoke control panel with touch screen for configuration of smoke and natural ventilation in up to 13 rooms / zones

WSC 520

  • Modular smoke ventilation panel
  • 20A
  • 13 smoke / comfort ventilation groups

Get a quote

About WSC 520

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Smoke ventilation according to EN 12101-10

    Smoke ventilation according to EN 12101-10

    The product is suitable for smoke ventilation according to EN 12101-10 and uses natural driving forces for the efficient exhaust of smoke and heat

230V rated voltage

    230V rated voltage

    The product use rated voltage 230V

Output current of 20A

    Output current of 20A

    The product have a maximum output current of 20A



    The product communicates with control panels with MotorLink® – an intelligent digital communication from WindowMaster



    The product is BACnet compliant, BTL tested and supports this BUS communication

KNX certified

    KNX certified

    The product is KNX certified and supports this BUS communication

Smoke ventilation according to ISO 21927-9

    Smoke ventilation according to ISO 21927-9

    The product is suitable for smoke ventilation according to ISO 21927-9 and uses natural driving forces for the efficient exhaust of smoke and heat

Product Details

Flexible, modular panel for smoke and comfort ventilation
FlexiSmoke™ WSC 520 is the smallest panel in the WSC 5xx series of modular smoke ventilation panels to control ±24V DC and MotorLink® window actuators in large and medium sized buildings e.g. shopping centres, schools or sport/leisure facilities. By linking more panels the FlexiSmoke™ is also suitable for very large buildings.

All groups in the panel have been configured in the same way which means that each group can easily be set for smoke and/or comfort ventilation.

Touch screen
FlexiSmoke™ has a build in 3½” LCD touch screen which makes it easy to configure, commission and maintain the panel – also without the need for a PC. System errors are described precisely on the touch screen to facilitate troubleshooting and initialization.

Opening speeds
 FlexiSmoke™ gives the possibility of up to three motor speeds depending of the type on motor:
 a) ±24V DC standard motor - 1 speed (H&S)
 b) MotorLink® motor - 2 speeds (H&S / manually operated)
 c) MotorLink® motor and bus communication - 3 speeds
 (H&S / manually operated / automatically)

The different speeds
 - H&S: a fast speed with H&S ventilation and security functions. (H&S always has first priority)
 - Manually operated: a faster and audible speed when manually operated by comfort ventilation
 - Automatically: a slow and almost soundless speed, when controlled automatically by comfort ventilation

Ease of cabling
The use of bus technology for the break glass units means that the need for cabling in the building is significantly reduced. The break glass unit bus are initialized directly on the panel‘s touch screen.

Smoke ventilation based on wind direction
The smoke ventilation panel can be set so that opening and closing of windows are determined by wind direction and speed. This means that facades can be utilized efficiently as part of the smoke ventilation without acquisition of additional modules aside from a wind direction sensor.

Bus communication
Comfort ventilation also possible with KNX or BACnet IP due to bus technology together with eg. NV Advance®.

Approved according to EN 12101-10 and ISO 21927-9.

The WSA 5MC KNX module is certified and listed by BACnet Interest Group Europe.

Flexible system structure
The modular smoke ventilation panel can be composed as required and it is easy to extend and reconfigure – either by adding modules or by joining several panels.


Output current20
Field BusBacNet
Primary Voltage230V AC (±10%) / 50HzV AC
Smoke zones13
Ventilation groups13
Motor Group Optionsmax. 13 motor groups
Motor line optionsmax. 13 motor lines
IP rating54
Leakage currentmax. 0.4mA @ 240VAC
MaterialMetal housing
Weight incl. batteries28.5kg
Weight excl. batteries16.5kg
Colour optionsGrey (RAL 7035)
To be ordered separately2 back-up batteries type WSA 017 (12V/17-18Ah)

Delivery includes

WSC 520 FlexiSmoke™ smoke control panel 20A. Delivered with 1 x WSA 501 (10kΩ-resistors, 10 pcs) as well as 1 x WSA 510 end of line module. If the module WSA 5UM is a part of the panel delivery will include 4 pcs. WSA 510 end of line module per ”WSA 5UM” module. Back-up batteries to be ordered seperately: use 2 pcs. WSA 017 (12V/17Ah).
