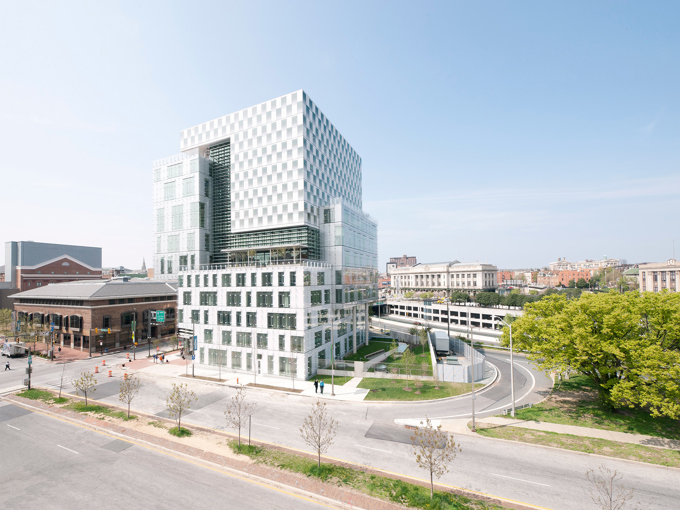

The John and Frances Angelos Law Centre at the University of Baltimore - a LEED Platinum certified educational building

Completed in 2013, the new home of the John and Frances Angelos Law Center at the University of Baltimore achieved LEED Platinum certification in 2014. The prominently placed building in Baltimore makes the Law School a social and academic nexus. The design of the building also unites the outdoor and indoor elements by placing people in connection to fresh air and daylight.

Visit this reference project

Solution

Natural ventilation

Location

Baltimore, MD, USA

Sector

Education

Project Type

New build

Controls & Technology

MotorLink

Year

2013

Project partners

Behnisch Architekten Transsolar

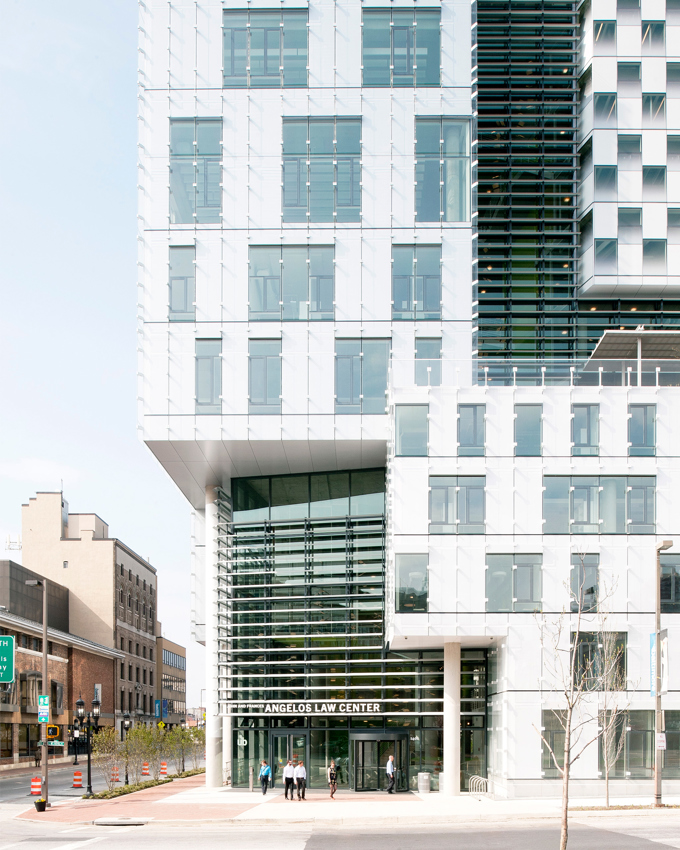

Dynamic facade for natural ventilation

WindowMaster provided more than 1,000 MotorLink® actuators that integrate the façade to the LONworks Buildings Management System. This enables full control of each motorized window. MotorLink® allows the actuators to operate intelligently with the BMS so that natural ventilation is controlled automatically in coordination with the building’s heating and cooling systems.

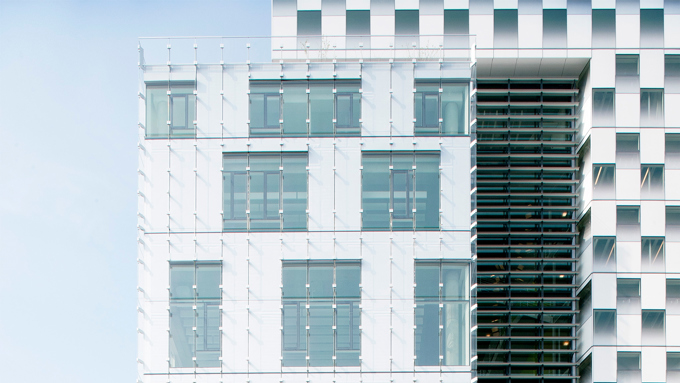

The University Of Baltimore School Of Law John And Frances Angelos Law Center

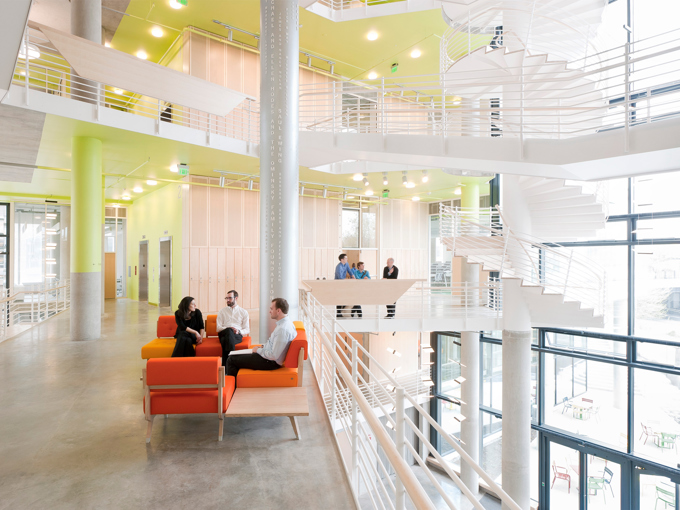

Atrium design with natural ventilation

The façade of the atrium is an all-glass, multi-story structure attached to a steel frame. The atrium contains automatically operable windows which are fully controlled by the BMS. The smoke exhaust fans in the atrium can be used at low speed in combination with the natural ventilation to enhance cross ventilation.

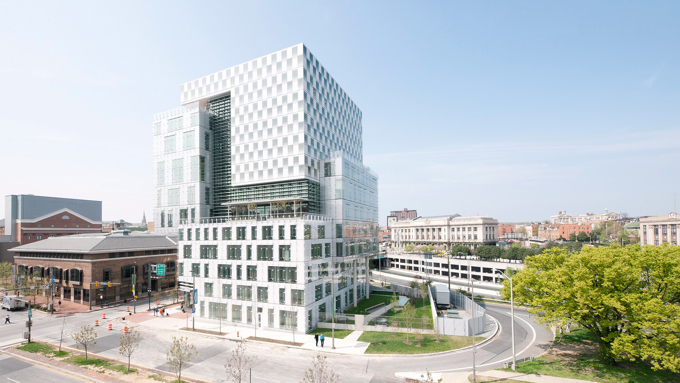

The University Of Baltimore School Of Law John And Frances Angelos Law Center

When natural ventilation is appropriate for the climate

Outdoor temperatures in Baltimore are appropriate for natural ventilation about 40% (approximately 5 months) of the year. Therefore, a mixed mode approach to the interior climate is taken, with mechanical ventilation, heating, and cooling during the extreme seasons and natural ventilation during spring and fall. According to Behnisch Architekten, the Law Center achieves a 43% energy cost savings over a baseline building.

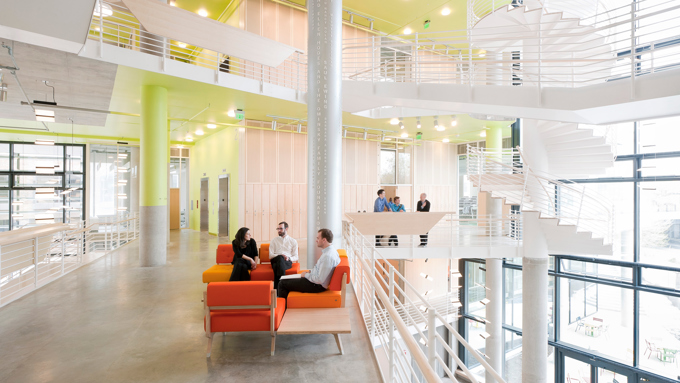

The University Of Baltimore School Of Law John And Frances Angelos Law Center

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
