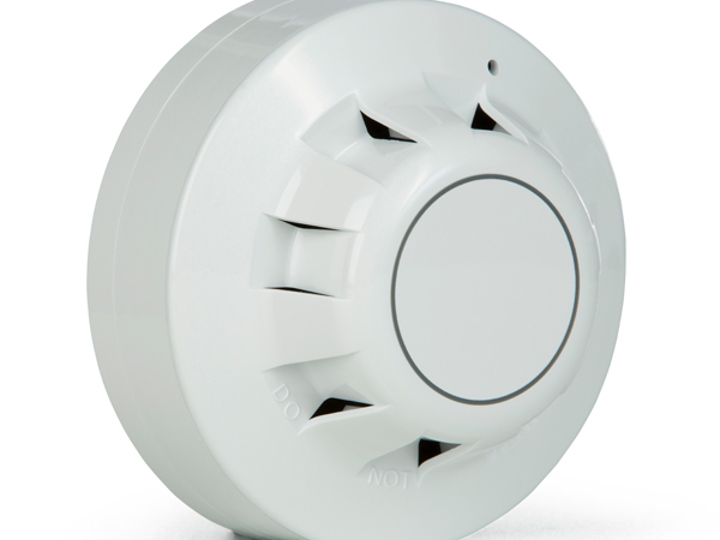

Smoke detector
WSA 300 61
- smoke registration triggers alarm
- for smoke panels
- the signal from the smoke detector has the highest priority in the WSC smoke panel
- Working on the basis of the scattered light principle
About WSA 300 61
Main features
-
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
-
VdS certified
The product is certified in accordance with the independent testing institution VdS
Product Details
A registration of smoke triggers the smoke detector and a signal is sent to the WSC smoke panel for activating the alarm.
The smoke detector works on the basis of the scattered light principle.
The trigger is indicated by a visual signal on the detector itself via a red LED.
The signal from the smoke detector has the highest priority in the WSC smoke panel.
The smoke detector is approved according to VdS. Approval no. G200017.
Specifications
| Colour options | White |
| Current consumption | Rest: 55μA; Alarm: 52mA by 24V |
| Power Supply | 24 VDC |
| Size | 100 x 50 (Ø x H)mm |
| Material | Plastic |
| IP rating | 22D |
| Alarm indication | Red LED on the smoke detector |
| Networked standby consumption | Please see attachment for networked standby consumption under the MotorController / smoke control panel to which the unit is connected. |
Delivery includes
Smoke detector incl. mounting plateIntelligent control of windows: MotorLink®
