About WLA 331 01
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
Product Details
The sensor can be connected directly to the control units WUC 102, WUC 160 and to all WSC 3xx / 4xx units (smoke and ventilation control units) as well as via the sensor interface WLF 111 on the control unit WLC 100.
Specifications
| Rated Voltage | 18-26 V AC / 20-32 V DC |
| Size | 80 x 80 x 55 (H x W x D)mm |
| Size inch | 3 1/8” x 3 1/8” x 2 3/16” (W x H x D) " |
| Material | Plastic housing |
| IP rating | IP 65 |
| Circuit output | 1 x potential free change over contact, 60V/2A |
| Networked standby consumption | Please see attachment for networked standby consumption under the MotorController / smoke control panel to which the unit is connected. |
Delivery includes

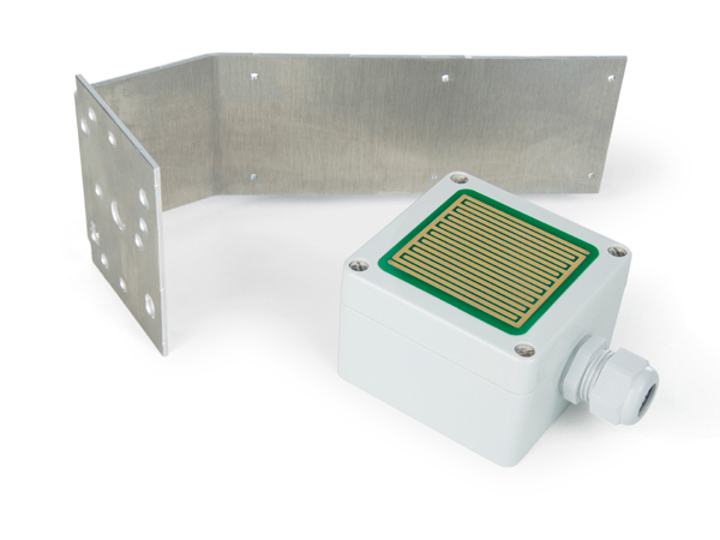

Rain sensor with mounting bracketsRelated Products
