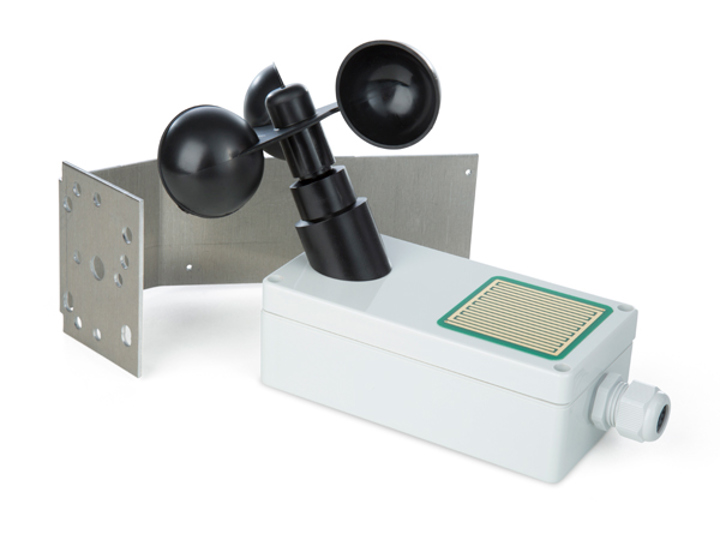

Wind and rain sensor
WLA 330 01
- Wind / rain sensor
- Used for detecting wind respectively rain
About WLA 330 01
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
Product Details
The sensor can be connected directly to the control units WUC 102, WCC 310/320 and to all WSC 3xx / 5xx units (smoke and ventilation control units).
Specifications
| Colour options | Grey |
| Rated Voltage | 18-26 V AC / 20-32 V DC |
| Size | 160 x 80 x 55 (H x W x D)mm |
| Size inch | 3 1/8” x 6 5/16” x 2 3/16” (W x H x D)" |
| Material | Plastic housing |
| IP rating | IP 65 |
| Circuit output | 1 x potential free change over contact, 60V/2A |
Delivery includes
Wind / rain sensor with mounting bracketsIntelligent control of windows: MotorLink®
MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
Read more
