KNX temperature and lux sensor with GPS receiver
WET 200
- temperature is measured between -30 - +55°C
- light is meassured between 1 - 22.000 lux
- GPS data received: geographical possition (LAT/LONG), angle of solar radiation during the day, sunrise / sunset times
- the measurements are sent directly via the KNX bus
About WET 200
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
KNX certified
The product is KNX certified and supports this BUS communication
Product Details

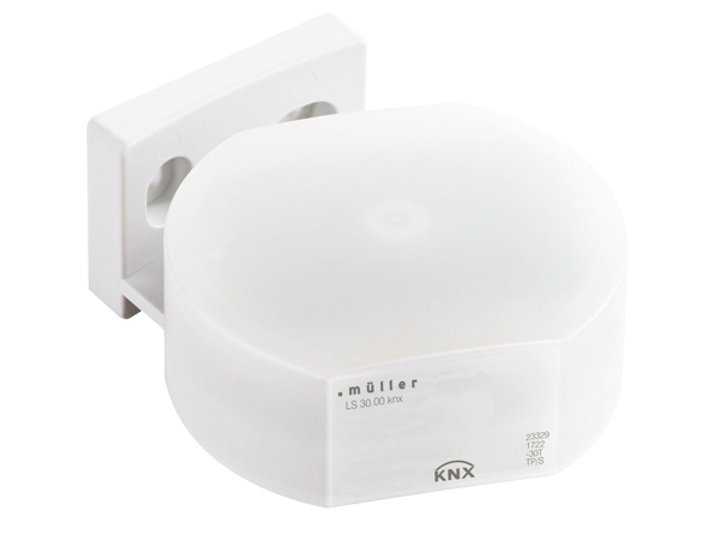

Outdoor sensor used for measuring temperature and light with GPS receiver.
The measurements are sent directly via the KNX bus.
Specifications
| Colour options | Studio white (RAL 9016) |
| Temperature, range of measurement | -30℃ - +50℃, ± 0.5℃°C |
| Light range of measurement | 1-22.000 lux |
| Current consumption | <10 mA |
| Power Supply | KNX bus |
| Size | 30 x 75 x 65 (H x W x D)mm |
| Material | Self extinguishing thermoplastic |
| IP rating | IP 54 |
| Networked standby consumption | Please see attachment for networked standby consumption under the MotorController / smoke control panel to which the unit is connected. |
Delivery includes
Sensor with bracket for wall mountingIntelligent control of windows: MotorLink®
MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
