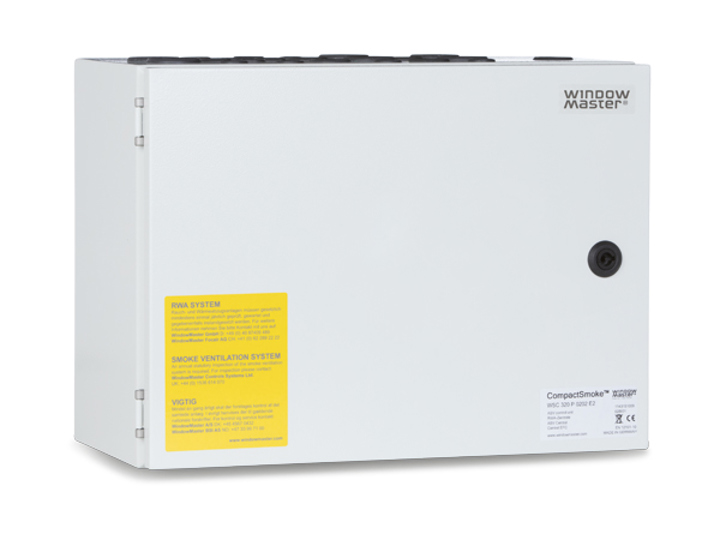

WSC 310 / 320 PLUS

Smoke control panel 10A / 20A PLUS

  • Compact smoke control panel
  • 10A or 20A
  • 10 smoke / 10 comfort ventilation groups

Get a quote
WSC 310 / 320 PLUS

About WSC 310 / 320 PLUS

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
230V rated voltage

    230V rated voltage

    The product use rated voltage 230V

  •
Smoke ventilation according to EN 12101-x

    Smoke ventilation according to EN 12101-x

    The product is suitable for smoke ventilation according to EN 12101-x and use natural driving forces for the efficient exhaust of smoke and heat

  •
Output current of 20A

    Output current of 20A

    The product have a maximum output current of 20A

  •
MotorLink®

    MotorLink®

    The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

  •
KNX certified

    KNX certified

    The product is KNX certified and supports this BUS communication

  •
Modbus

    Modbus

    The product is Modbus compliant and supports this BUS communication

  •
BACnet

    BACnet

    The product is BACnet compliant, BTL tested and supports this BUS communication

Product Details

Smoke control panel for smoke and comfort ventilation

The panels can be used in small and medium sized buildings as well as in building sections e.g. stair cases and restaurants.

The panels has:
- up to 10 smoke / 10 daily ventilation groups
- 10A or 20A

Touch screen
The panel has a build in 2½” LCD touch screen which makes it easy to configure, commission and maintain the panel – also without the need for a PC. System errors are described precisely on the touch screen to facilitate troubleshooting and initialization.

Opening speeds
This panel gives the possibility of up to three actuator speeds depending of the type of the connected actuator:
a) ±24V DC standard actuator - 1 speed (H&S)
b) MotorLink® actuator - 2 speeds (H&S / manually operated)
c) MotorLink® actuator and bus communication - 3 speeds
    (H&S / manually operated / automatically)

The different speeds
H&S: a fast speed with H&S ventilation and security functions.
H&S has always first priority

Manually operated: a faster and audiable speed when manually operated by comfort ventilation

Automatically: a slow and almost soundless speed, when controlled automatically by comfort ventilation


Ease of cabling
The use of bus technology for the break glass units means that the need for cabling in the building is significantly reduced. The break glass unit bus are initialized directly on the panel‘s touch screen.


Smoke ventilation based on wind direction
The smoke ventilation panel can be set so that opening and closing of windows are determined by wind direction and speed. This means that facades can be utilized efficiently as part of the smoke ventilation without acquisition of additional modules aside from a wind direction sensor.

Bus communication
Comfort ventilation also possible with KNX, BACnet IP or BACnet MSTP due to bus technology together with eg. NV Comfort® or NV Advance®.

Certification
Approved and certified according to EN 12101-10.

Specifications

Variants Item no.
Smoke panel: 10A, 2 smoke zones / 2 daily comfort groups, 2 inputs for keypads WSC 310 P 0202
Smoke panel: 20A, 2 smoke zones / 2 daily comfort groups, 2 inputs for keypads WSC 320 P 0202
Smoke panel: 20A, 10 smoke zones / 10 daily comfort groups, 12 inputs for keypads WSC 320 P 1012

Delivery includes

Smoke control panel WSC 310 PLUS (10A) or WSC 320 PLUS (20A)

Delivered with:
WSA 501 (10kΩ-resistors, 10 pcs)
WSA 510 end of line module (WSC 310 / 320 0202: 2 pcs., WSC 320 1012: 10 pcs)
Back-up batteries (WSC 310: 2 x WSA 007, WSC 320: 2 x WSA 012)

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
