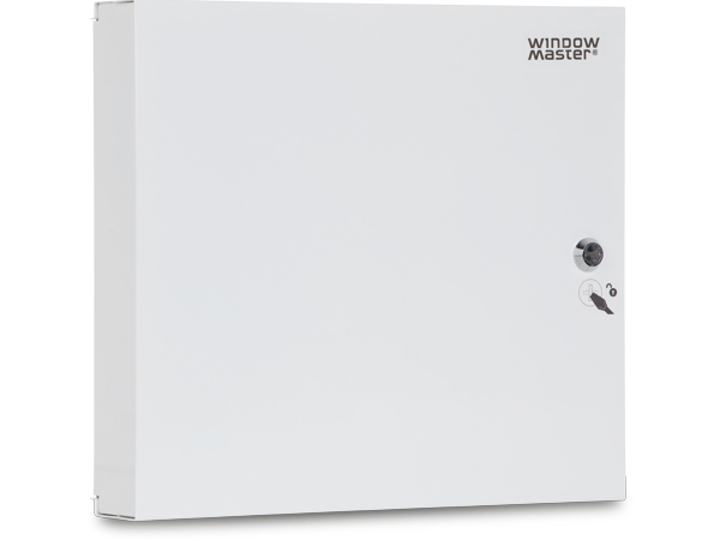

WCC 310 / 320 PLUS

MotorController 10A / 20A PLUS

  • 10A or 20A
  • Up to 10 motor lines and 12 inputs
  • KNX, BACnet IP/MSTP and MODBUS TCP/RTU
  • Control of ±24V DC standard actuators and actuators with MotorLink®

Get a quote
WCC 310 / 320 PLUS

About WCC 310 / 320 PLUS

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
230V rated voltage

    230V rated voltage

    The product use rated voltage 230V

  •
Output current of 20A

    Output current of 20A

    The product have a maximum output current of 20A

  •
MotorLink®

    MotorLink®

    The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

  •
KNX certified

    KNX certified

    The product is KNX certified and supports this BUS communication

  •
BACnet

    BACnet

    The product is BACnet compliant, BTL tested and supports this BUS communication

  •
Modbus

    Modbus

    The product is Modbus compliant and supports this BUS communication

Product Details

MotorController for daily comfort ventilation
MotorController for the control of ±24V DC standard actuators and actuators with MotorLink® for daily comfort ventilation. It can also control espagnolette/locking actuators.
The MotorController can be used in small and medium sized buildings as well as in building sections e.g. stair cases and restaurants.

The MotorController controls (opens/closes) the window actuators based on the signals from the connected components e.g. keypads, room sensor, weather sensor and BUS commands.

The MotorController has
- up to 10 motor lines and 12 inputs
- 10A or 20A

With build-in touch screen for configuration.

Specifications

Technical specifications
Primary voltage: 230V AC, 50Hz (85-264V AC, 47-63Hz)
Output current WCC 310: 10A / WCC 320: 20A
Colour: White (RAL 9010)
Size: 355 x 320 x 76mm (WxHxD)
Variants Item no.
MotorController 10A, 2 motor lines each 10A, max. 10A total, 2 inputs WCC 310 P 0202
MotorController 10A, 6 motor lines each 10A, max. 10A total, 12 inputs WCC 310 P 0612
MotorController 10A, 10 motor lines each 10A, max. 10A total, 12 inputs WCC 310 P 1012
MotorController 20A, 2 motor lines each 10A, max. 20A total, 2 inputs WCC 320 P 0202
MotorController 20A, 6 motor lines each 10A, max. 20A total, 12 inputs WCC 320 P 0612
MotorController 20A, 10 motor lines each 10A, max. 20A total, 12 inputs WCC 320 P 1012

Delivery includes

MotorController

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
