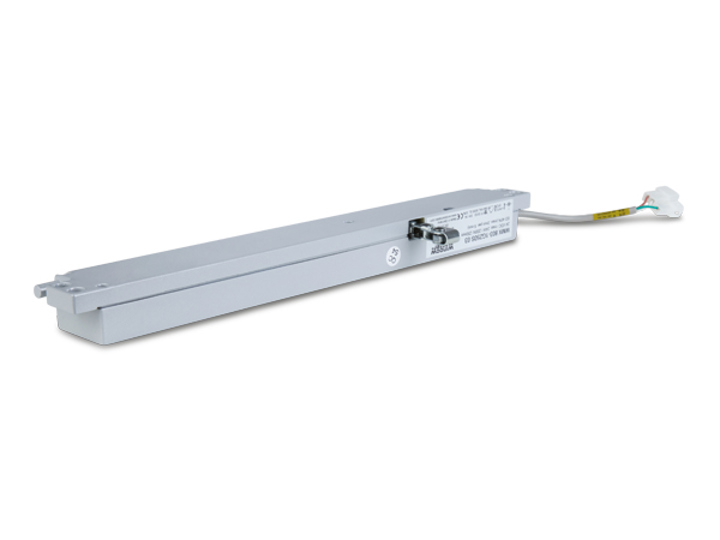

WMX 803
Small 1A Chain actuator for concealed installation suited for natural ventilation
- Chain actuator for concealed installation
- For comfort ventilation.
- For all window types except roof lights.
About WMX 803
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
-
24V Nominal voltage
The product is to be connected to a ±24V power supply
-
MotorLink®
The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster
-
UL certified
The product is UL certified according to UL325 for US and CSA C22.2 no.247-14 for Canada
-
Product Details
Programmable 24VDC chain actuator for concealed installation in window profiles for comfort ventilation.
Not appropriate with roof windows.
Chain brackets to be ordered seperately.
Specifications
| Installation Type | Integrated Surface mounted |
| Window types | Facade windows |
| Chain stroke options | 50 - 250mm in increments of 10mm |
| Pressure Force | 150N |
| Traction force | 200N |
| Locking force | 3000N |
| Operating speed | Programmable from 3mm/s to 10mm/s |
| Sound pressure level | ≤33 dBA (operational speed: 3 mm/s)dBA ≤43 dBA (operational speed: 9,5 mm/s)dBA |
| Power Supply | 24 V DC |
| Current consumption | 1A |
| Nominal Voltage | 24V DC (max. 10% ripple)V DC |
| IP rating | Concealed: IP 32 Surface mounted: IP 20 |
| Life span | Tested with 10,000 opening and closing movements |
| Size | 30 x 342 x 42 (H x W x D)mm |
| Colour options | Grey (RAL 9006) |
| Material | Lacquered zinc house with 10mm zinc cromate passivated steel chain |
| To be ordered separately | Brackets and standard extension cables type WLL |
Delivery includes
Actuator with 100mm connection cable with fast-in/fast-on connector for WLL cable
