WMX 802

Product discontinued

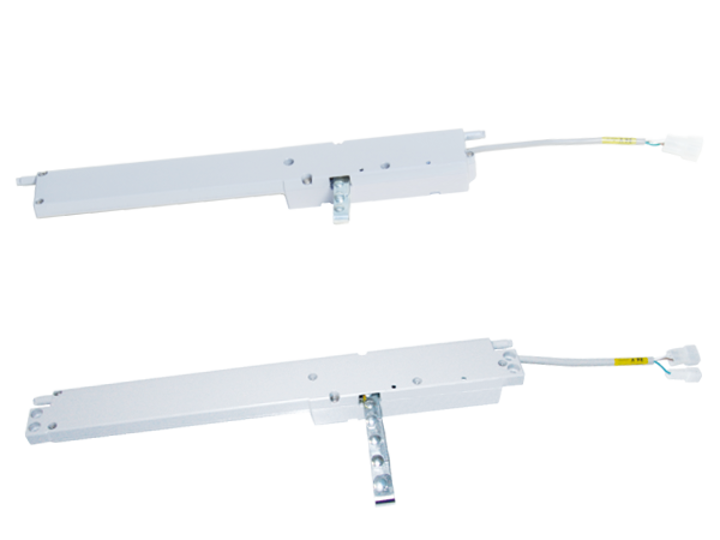

Chain actuator (discontinued product)

  • For concealed installation in window profiles
  • For smoke- and comfort ventilation

Get a quote
WMX 802

About WMX 802

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
Smoke ventilation

    Smoke ventilation

    The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

  •
24V Nominal voltage

    24V Nominal voltage

    The product is to be connected to a ±24V power supply

  •
MotorLink®

    MotorLink®

    The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

Product Details

The product is discontinued. WMX 803 might be a substitute - please contact WindowMaster for further information.



Programmable 24VDC chain actuator for concealed installation in window profiles for smoke - and comfort ventilation.




The electronics in this actuator can be programmed to suit specific requirements – i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation.



Chain brackets to be ordered seperately.





Chain opening: 50 - 250mm, in increments of 10mm
Opening speed: 7,5mm/s
Pressure force: Max. 150N - dependent on the chain length
- see the table on the product sheet
Tractive force: 200N
Operating voltage:   24 VDC (max. 10% ripple)
Current consumption:   1A
Size: 343 x 29 x 42mm ((LxHxW) )
Colour: Grey (RAL 7004)

Specifications

Delivery includes

Chain actuator with 100mm connection cable with fast-in/fast-on connector for WLL cable

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
