Small 0.5A Chain actuator for concealed installation suited for natural ventilation

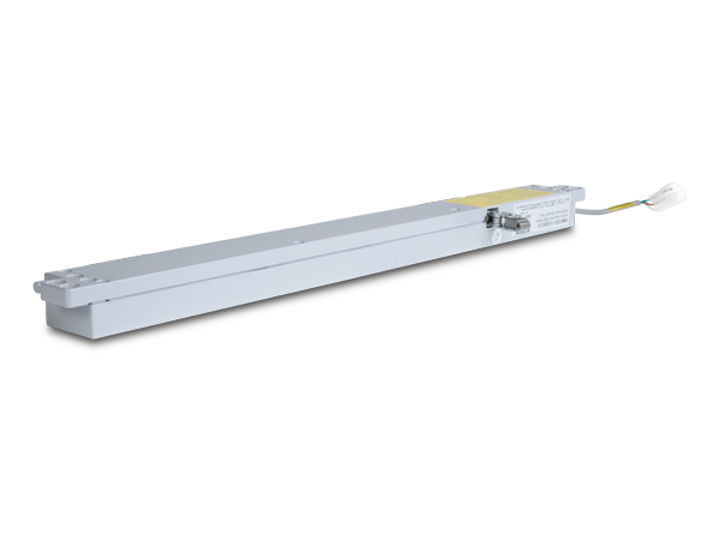

WMX 523
- Chain actuator for concealed installation.
- For comfort ventilation.
- For top hung, bottom hung and turning windows.
Get a quote
About WMX 523
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
Smoke ventilation according to EN 12101-2
The product is with selected profiles and correct fabrication documentation suitable for smoke ventilation according to EN 12101-2 and uses natural driving forces for the efficient exhaust of smoke and heat
-
Smoke ventilation according to B300
The product is suitable for smoke ventilation according to B300 and use natural driving forces for the efficient exhaust of smoke and heat
-
±24V Nominal voltage
The product is to be connected to a ±24V control panel
-
MotorLink®
The product communicates with control panels with MotorLink® – an intelligent digital communication from WindowMaster
Product Details
Programmable 24V DC chain actuator for concealed installation for comfort ventilation.
To be used with top hung, bottom hung and turning windows.
Not appropriate with roof windows.
Description
– to be used together with ±24V control units or control units with MotorLink®
– can be used together with espagnolette WMB
– external safety edge can be connected directly to the actuator (actuator version ’E’)
– available with and without UL certification:
- Europe: order without UL certification (version 0)
- USA / Canada: order with UL certification (version U)
– synchronization of up to four window actuators – no need for an external
synchronization module
– genuine position feedback and three speeds when using control unit with MotorLink®
– soft close
– the electronics in this actuator can be programmed to suit specific requirements
– i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100
programming box, also possible following installation
– built-in electronic load switch-off/end stop
– electronic actuator with micro controller
– the actuator has an integrated reverse function to ensure a prolonged life span of
the window gaskets
– easy mounting
Specifications
| Installation Type | Integrated Surface mounted |
| Window types | Bottom hung Side hung Top hung |
| Chain stroke options | 50 - 500 mm in increments of 10 mm |
| Pressure Force | 150N |
| Traction force | 150N |
| Locking force | 3000 N |
| Operating speed | Programmable from 3mm/s to 10mm/s |
| Sound pressure level | ≤30 dBA (operational speed: 3 mm/s)dBA ≤46 dBA (operational speed: 9.5 mm/s)dBA |
| Power Supply | 24 VDC |
| Current consumption | 0.5 A |
| Nominal Voltage | 24V DC (max. 10% ripple) |
| IP rating | Concealed: IP 32 Surface mounted: IP 20 |
| Life span | Tested with 10,000 opening and closing movements |
| Size | 30,5 x 517 x 42 (H x W x D)mm |
| Colour options | Grey (RAL 9006) |
| Material | Lacquered zinc house with 13mm zinc cromate passivated steel chain |
| To be ordered separately | Brackets and standard extension cables type WLL |
| Networked standby consumption | Please see attachment for networked standby consumption under the MotorController / smoke control panel to which the unit is connected. |
Delivery includes
Actuator with 100mm connection cable with fast-in/fast-on connector for WLL cableIntelligent control of windows: MotorLink®
MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
