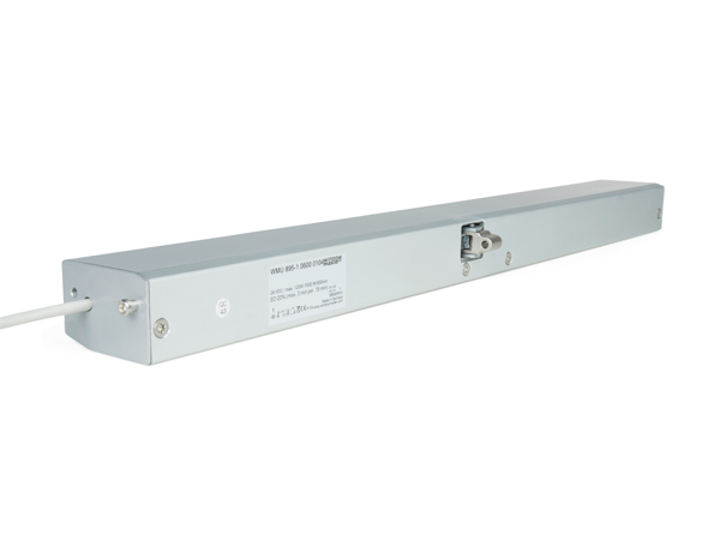

Chain actuator 1500N 5A
WMU 895
- Chain actuator for large and heavy windows – an elegant alternative to spindle actuators.
- For smoke and comfort ventilation.
- For top hung, bottom hung, turning, pivot, roof window and light dome.
About WMU 895
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
Smoke ventilation according to EN 12101-2
The product is with selected profiles and correct fabrication documentation suitable for smoke ventilation according to EN 12101-2 and uses natural driving forces for the efficient exhaust of smoke and heat
-
smoke ventilation according to B300
The product is suitable for smoke ventilation according to B300 and use natural driving forces for the efficient exhaust of smoke and heat
-
±24V Nominal voltage
The product is to be connected to a ±24V control panel
-
MotorLink®
The product communicates with control panels with MotorLink® – an intelligent patented digital communication from WindowMaster
Product Details
The actuator is a high performance actuator especially designed for large and heavy windows – an elegant alternative to spindle actuators.
Complete opening of the window within 60sec. (depending on the programming).
The actuator is approved according to EN 12101-2 with selected profiles – please contact WindowMaster for further information.
Description
– to be used together with ±24V control units or control units with MotorLink®
– can be used together with espagnolette WMB
– synchronization of up to 4 window actuators - no need for an external
synchronization module
– genuine position feedback and 3 speeds when using control unit with
MotorLink®
– soft close function
– built-in electronic load switch-off/end stop
– electronic actuator with micro controller
– the actuator has an integrated reverse function to ensure a prolonged life
span of the window gaskets
– easy mounting
Specifications
| Installation Type | Surface mounted |
| Window types | Top hung Bottom hung Side hung Light dome Roof Facade windows |
| Chain stroke options | 500mm 600mm 750mm 1000mm |
| Pressure Force | 1000N |
| Traction force | 500N |
| Locking force | 3000N |
| Operating speed | Programmable from 4mm/s to 17mm/s |
| Sound pressure level | ≤43 dBA (operational speed: 13 mm/s)dBA |
| Power Supply | 24 V DC |
| Current consumption | 5A |
| Nominal Voltage | 24V DC (max. 10% ripple)V DC |
| IP rating | 54 |
| Life span | Tested with 10,000 opening and closing movements |
| Colour options | Anodised aluminium |
| Material | Anodised aluminium housing with zinc cromate passivated steel chain |
| To be ordered separately | Brackets and standard extension cables type WLL |
Delivery includes
Europe: actuator with 5m connection cableIntelligent control of windows: MotorLink®
