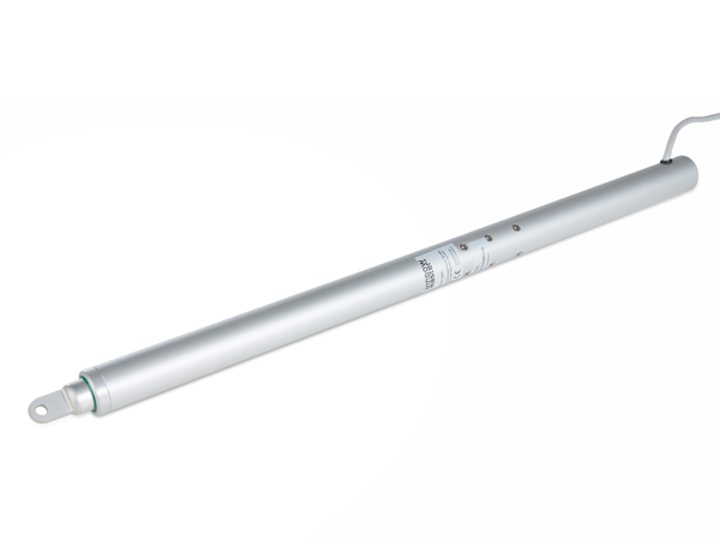

WMS 409-n

Spindle actuator 900N MotorLink®

  • Spindle actuator 900N with MotorLink®
  • For smoke and comfort ventilation

Get a quote
WMS 409-n

About WMS 409-n

Main features

  • 24V Nominal voltage

    24V Nominal voltage

    The product is to be connected to a ±24V power supply

  •
Smoke ventilation according to EN 12101-2

    Smoke ventilation according to EN 12101-2

    The product is suitable for smoke ventilation according to EN 12101-2 and uses natural driving forces for the efficient exhaust of smoke and heat

  •
MotorLink®

    MotorLink®

    The product communicates with power supplies with MotorLink® – an intelligent patented digital communication from WindowMaster

  •
Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Product Details

Strong actuator suitable for roof openings for smoke and comfort ventilation

To be used together with ±24V control units or control units with MotorLink®

Synchronization of up to 4 window actuators – no need for an external synchronization module

Genuine position feedback and 3 speeds when using control unit with MotorLink®

The electronics in this actuator can be programmed to suit specific requirements – i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, this is also possible following installation

The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets



Brackets and fastenings to be ordered seperately.

Specifications

Technical specifications
Spindle stroke see product sheet under down loads
Opening speed 12,5 mm/s (full load)
Force max. 900N
Nominal voltage 24 VDC, max.15% ripple
Current consumption  1.8A
Size Ø36mm
Colour anodized aluminium (EV1)

Delivery includes

spindle actuator with 5m silicon connecting cable

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
