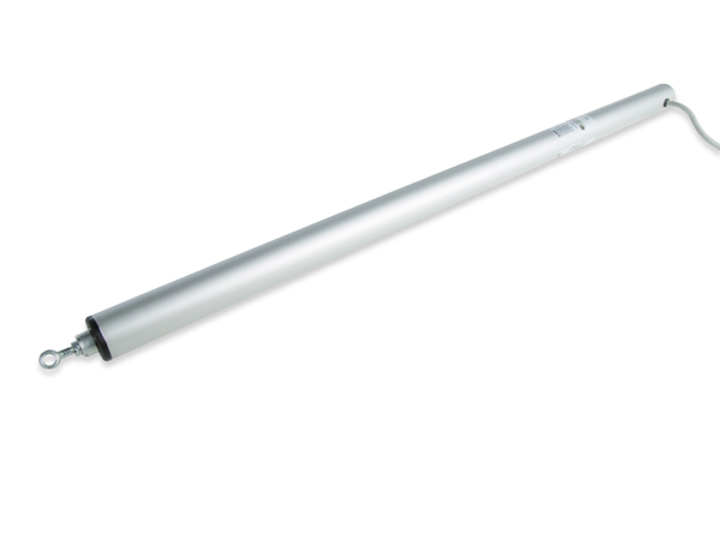

Spindle actuator 600N, single version
WMS 306
- Spindle actuator, single version, 600N
- For comfort ventilation
About WMS 306
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
±24V Nominal voltage
The product is to be connected to a ±24V control panel
Product Details
This actuator is equipped with an electric overload switch.
Brackets and fastenings to be ordered seperately.
Specifications
| To be ordered separately | Brackets and standard extension cables type WLL |
| Installation Type | Surface mounted |
| Spindle stroke | 300mm 500mm 750mm |
| Pressure Force | 600N |
| Traction force | 600N |
| Locking force | 3000 N |
| Operating speed | 5mm/s |
| Power Supply | 24 VDC |
| Current consumption | 1 A |
| Nominal Voltage | 24 VDC (+30% -20%) max. 10% ripple |
| IP rating | IP 54 |
| Colour options | Natural anodised aluminium (EV1) |
| Material | Aluminium |
| Networked standby consumption | Please see attachment for networked standby consumption under the MotorController / smoke control panel to which the unit is connected. |
Delivery includes
Spindle actuator with 2.5m silicon connecting cable.Intelligent control of windows: MotorLink®
MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
