WML 825

Window actuator for VELUX

  • Chain actuator for surface mounting.
  • For smoke and comfort ventilation.
  • For VELUX VELUX swing windows GGL, GGU from size F06 and VL from size 033.


Get a quote
WML 825

About WML 825

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
Smoke ventilation

    Smoke ventilation

    The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

Product Details

Smoke ventilation chain actuator for VELUX swing windows GGL, GGU from size F06 and VL from size 033.

The operator can be connected directly to the WindowMaster smoke ventilation control units WSC 3xx and WSC 5xx.

Specifications

Technical specifications
Stroke Max. 540 mm
Nominal voltage 24V DC
Current consumption 1A
Size 520 x 30 x 87mm (WxHxD)
Colour Grey (RAL 7004)

Delivery includes

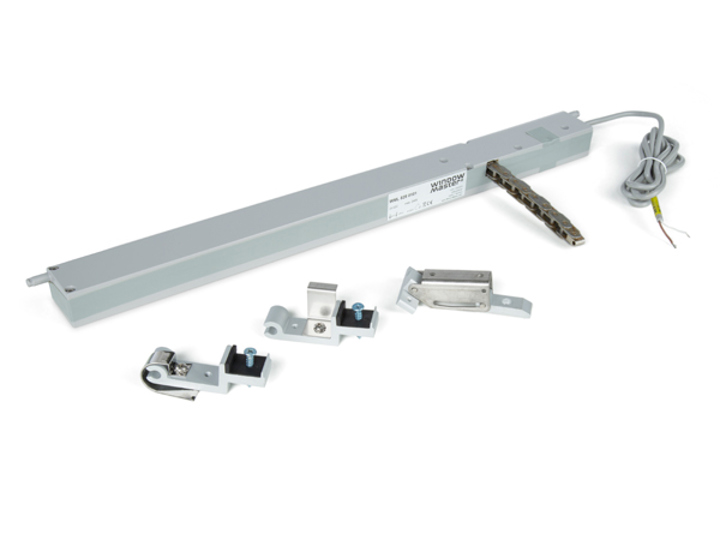

Chain actuator with motor bracket, chain bracket, 1.5 m silicon cable and screws.

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.

Read more
