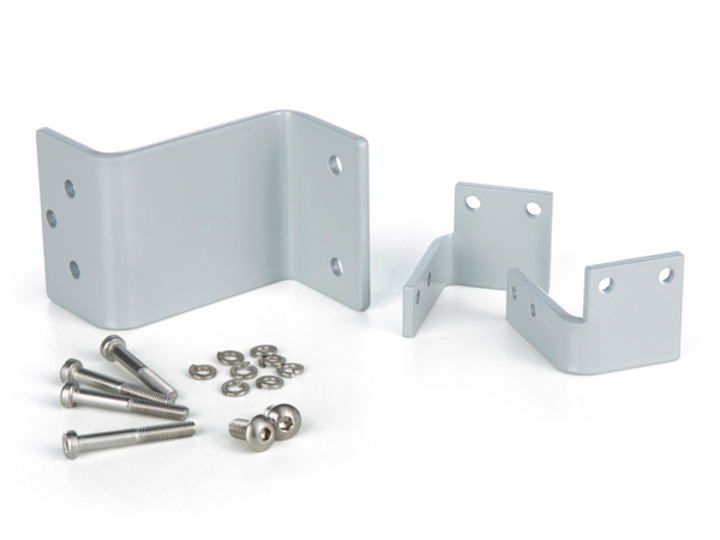

Z bracket for WMX 504 / 526 / 804 / 824 / 826
WAB 805 0101 / WAB 805 1101
- Z-bracket in alu or white
- For mounting the actuator onto the frame
- For chain actuators WMX 804 / 824 / 826
About WAB 805 0101 / WAB 805 1101
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
Product Details
For mounting the actuator onto the frame.
Requires a free frame height of more than 35mm.
For flush fitting windows
Specifications
| Bracket type | Actuator bracket Z-bracket |
| Installation Type | Surface mounted |
| Material | Steel |
| Colour options | Grey White |
Delivery includes
Bracket and screwsDownloads
Product sheetInstallation instructionPDF Product Drawing_WMX 804_WAB 801_WAB 805DWG Product Drawing_WMX 804_WAB 801_WAB 805DWG Product Drawing_WMX 526_WMX 826_WAB 801_WAB 805_WAB 829PDF Product Drawing_WMX 526_WMX 826_WAB 801_WAB 805_WAB 829DWG Product Drawing_WMX 526_WMX 826_WAB 801_WAB 805PDF Product Drawing_WMX 526_WMX 826_WAB 801_WAB 805
