Motor interface 230VAC/24 VDC, 3A
WUF 121
- 3A
- Individual operation of a ±24V DC actuator from a 230V AC control system
About WUF 121
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
230V rated voltage
The product use rated voltage 230V
Product Details
To be use with one or more WindowMaster ±24V DC actuators with a total power consumption of 3A as well as a keypad e.g. WSK 100.
The interface can be installed on the wall. No special tools are required.

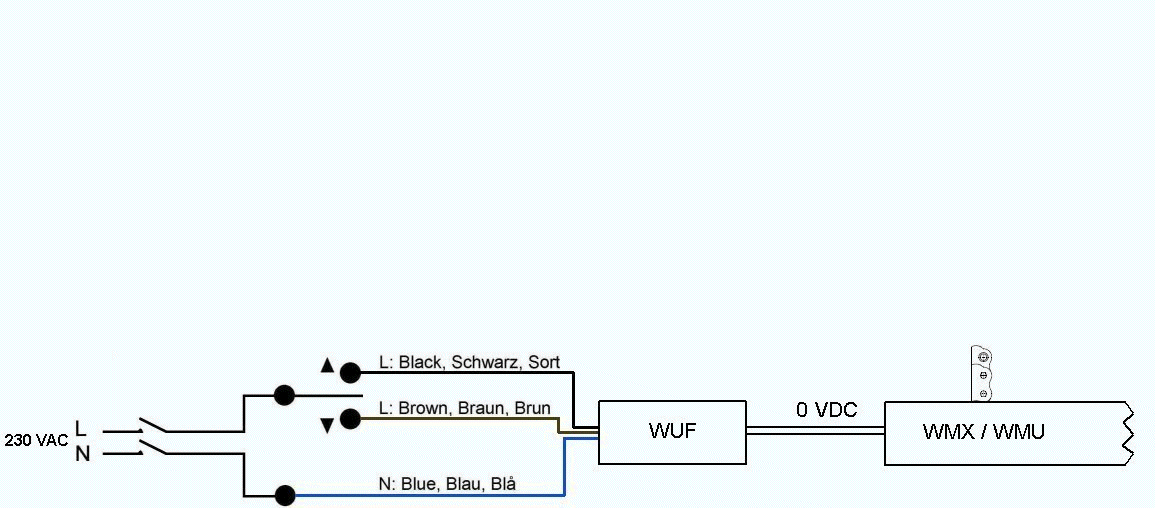

The 1.3m 3-core cable is connected to the 230V main supply via the switch.
Specifications
| Material | Fire retardent polycarbonate housing in compliance with UL 94-5V |
| Standby consumption | 3W |
| Size | 180 x 220 x 70mm (WxHxD)mm |
| Insulation / Earthing | The product is a double insulated class 2 product, which means it will not require earth connection |
| IP rating | IP 20 |
| Primary Voltage | 230V AC, ±10%V AC |
| Secondary voltage | Nominel: ±24V DC, 3A; Low: 17-27V DC; High: 20-30V DC (standard) |
| Constant power | Yes |
Delivery includes
Actuator interface with 1.3m mains cable (without a cable for connection to the actuators, connection on the terminal blok)Intelligent control of windows: MotorLink®
MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
