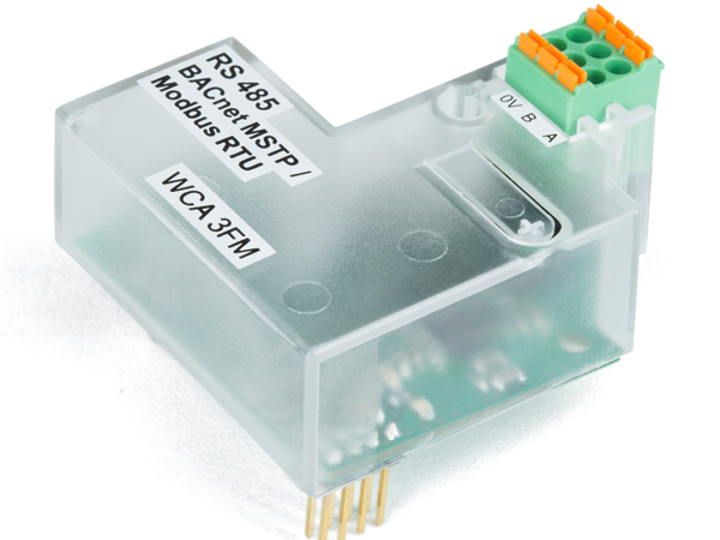

WCA 3FM

Fieldbus card BACnet/MSTP interface

  • Fieldbus card BACnet/MSTP, Modbus RTU and RS 485 interface
  • Used for WCC 310/320 PLUS and WSC 310/320 PLUS

Get a quote
WCA 3FM

About WCA 3FM

Main features

  • Smoke ventilation

    Smoke ventilation

    The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

  •
Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
BACnet

    BACnet

    The product is BACnet compliant, BTL tested and supports this BUS communication

Product Details

The smoke panels WSC 310/320 PLUS as well as MotorControllers WCC 310/320 PLUS, can be expanded with a communication card thus comfort ventilation will be possible via bus communicaion BACnet/MSTP, Modbus RTU and RS 485.

The connection of a fieldbus card enables communication and access to the available bus-objects depending on the chosen system. Smoke extraction function has always higher priority than comfort commands from the field bus and it is recommended only to use field bus for comfort purposes.
There is a set of objects available for each motor line, ventilation group and smoke zone, which provides the options for status and commands. For further information on available objects see ”Modbus Register Description” and BACnet PICS” under the WSC 310 /320 PLUS smoke panel or the WCC 310/320 PLUS MotorController.

Specifications

Delivery includes

Fieldbus card BACnet/MSTP, Modbus RTU and RS 485 interface

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
