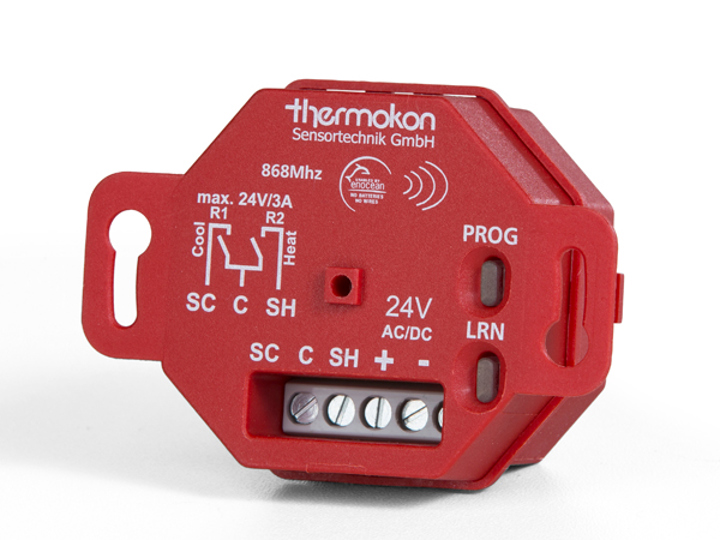

WSK Thermokon - 1510683

Keypad - wireless - receiver

  • Receiver
  • Used for 'WSK Thermokon wireless keypad' and 'WSK Thermokon remote control'

Get a quote
WSK Thermokon - 1510683

About WSK Thermokon - 1510683

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
Smoke ventilation

    Smoke ventilation

    The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

Product Details

The ventilation keypad and remote control are used for the manual opening and closing of electrically operated windows, smoke vents or light domes. The receiver, which receive signals from the keypad and remote control, can be connected to all WindowMaster control units and smoke ventilation panels. The ventilation keypad signal and the remote control signal have second priority in the smoke unit, meaning the signals from smoke detectors, smoke ventilation switches and external smoke alarm units have first priority.

The receiver can receive up to 10 identical signals and thus can up to 10 keypads/remote controls be connected to the receiver. Is there more than one type of signal two receivers are to be used.



The receiver has three options for operating the open / close / stop function on the keypad and remote control:Option 1 (preset):

Long press: opens/closes the actuators in the preset operation time or until stop is pressed
Short press: closing


Option 2:
Short press: opens/closes the actuators in the preset operation time or until stop is pressed
Short press: closing


Option 3 (deadman function):
Opens/closes the actuators as long as the button is pressed, but no longer that the preset operation time.



Specifications

Technical specifications
Supply voltage 24V from WindowMaster control unit or smoke ventilation panel
Standby consumption 1.5W
IP rating IP20
Mounting Screwed onto flat surface
The receiver can also be hidden in a box (not supplied by WindowMaster)
Material ABS
Size 71 x 48 x 35mm (WxHxD)
Colour Red

Delivery includes

Receiver

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
