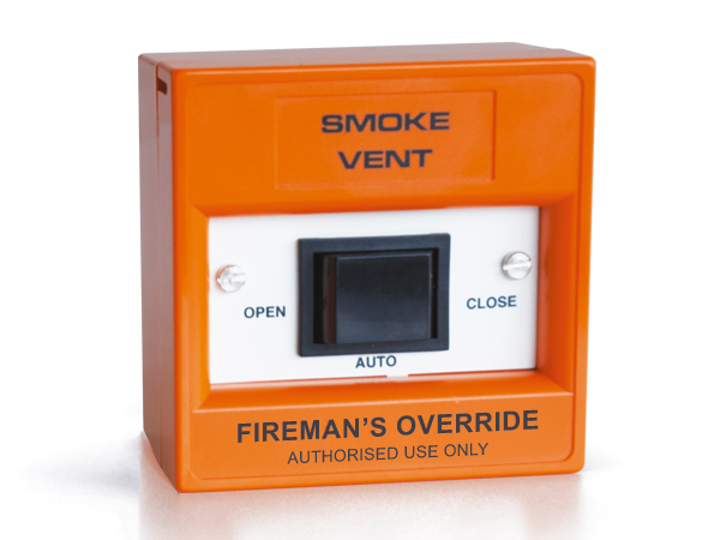

Fireman's override switch
WSK 601
- Fireman switch
- Used for smoke control panels type WSC 310P / 320P / 5xx
About WSK 601
Main features
-
Smoke ventilation
The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat
Product Details
When the fireman switch is triggered the windows will either open or close depending on the configuration.
To be connected to a break glass unit type WSK 501 or WSK 502.
- 3-position switch for manual override of Open / Close function of smoke system
- triggering of Open / Close override function in one or more smoke zones
- Open / Close function is configured on the smoke control panel
- switch configurable to have the highest priority in smoke control panels
Only for British and Irish markets.
Specifications
| Material | Plastic housing |
| Rated Voltage | 24 V DC |
| IP rating | 40 |
| Size mm | 87 x 87 x 52 (H x W x D)mm |
| Colour options | Orange |
Delivery includes
Firemans's override switchDownloads
