WSK 503

Break glass unit (primary), plastic housing, no connection for components

  • Primary break glass unit
  • With an audible signal
  • Plastic housing

Get a quote
WSK 503

About WSK 503

Main features

  • Smoke ventilation

    Smoke ventilation

    The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

Product Details

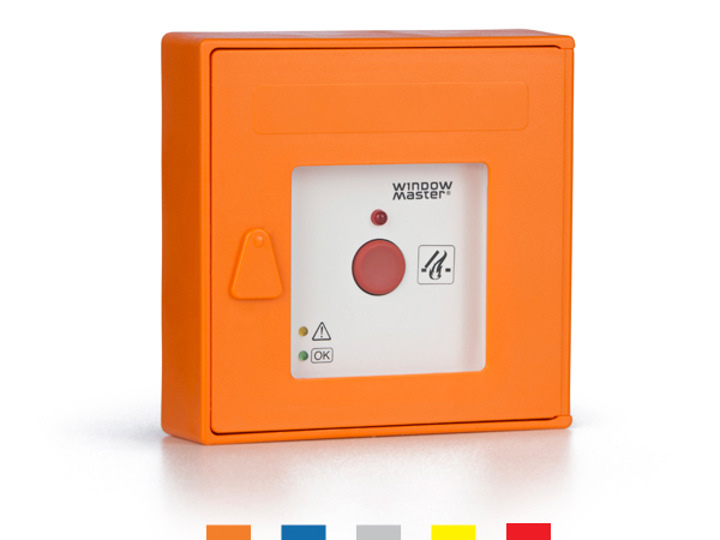

Primary glass break unit, plastic housing, for manual activation of smoke ventilation system.

The glass break unit is suitable for smoke ventilation panels type WSC 310, WSC 320, WSC 520, WSC 540, WSC 560.

Without connections for components.



Break glass unit with:

  • data communication (break glass unit bus)
  • an audible signal - when opening the door the signal will be interrupted.
  • coloured LEDs for indicating fire triggering or if a fault is present on the system



Spare parts (glass, keys etc.) can be ordered separately.

Specifications

Technical specifications
Rated current 24V DC
IP rating IP40
Data communication Break glass unit bus
Housing Plastic
Size 125 x 125 x 36mm (WxHxD)
Colour Red, orange, yellow, grey or blue

Delivery includes

Break glass unit with key and "SMOKE VENT" text labels

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
