FlexiSmoke™

Tested to EN 12101-10, this is a modular smoke control system for large and medium sized areas. It also includes the possibility of natural ventilation control. Contact us to discuss a smoke control strategy for your building.

Get a system demo

FlexiSmoke delivers

  • Icon Touch

    Easy initialization

    Easy-to-read 3½ inch LCD touch screen makes the panel easy to configure, commission, and maintain. System errors are described on-screen to facilitate troubleshooting and initialization.

  • Icon Decrease

    Reduced cabling

    FlexiSmoke uses bus technology, reducing the overall cabling for break glass units, smoke detectors, and keypads.

  • Icon Building Performance

    Flexible system structure

    Available in three different sizes 20A, 40A and 60A, FlexiSmoke can expand to multiple zones and incorporate automated natural ventilation.

  • Icon Smoke Ventilation

    Smoke ventilation based on wind direction

    The smoke control panel can be set so that the opening and closing of windows are determined by wind direction and speed. The only addition needed is a wind direction sensor.

Installation Help

Two smoke zone implementation



How to implement a large smoke area using two panels



How to connect and configure a chain and locking actuator



Firmware update



Sequential control configuration



How to retrieve a log file



How to retrieve a configuration back-up file

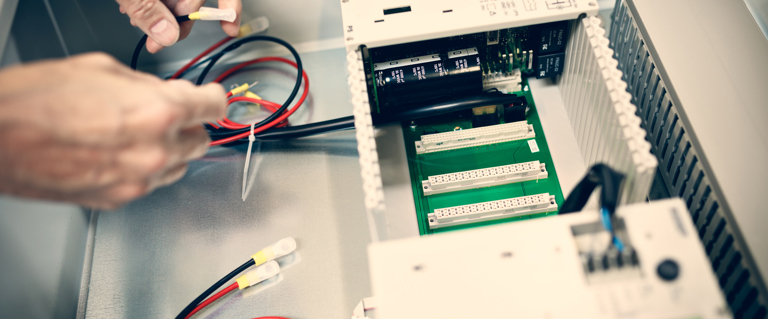

FlexiSmoke assembly

More about FlexiSmoke

Configuration and troubleshooting

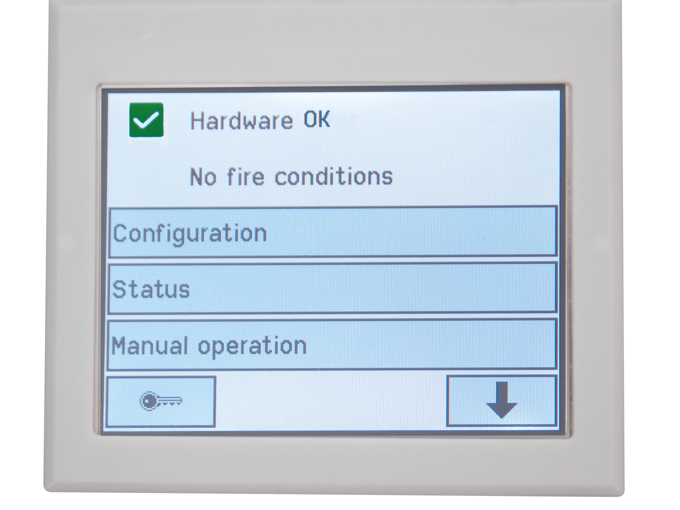

This can be done with the integrated touchscreen, or a PC can be connected without additional modules.

Flexismoke Display ENG

±24V DC or comfort ventilation

The smoke control panel gives the possibility of up to three actuator speeds depending on the type of actuator:

  • ±24V DC standard actuator with one speed for SHEV
  • MotorLink® actuator intelligence with three speeds (SHEV / comfort ventilation / intelligent automation)

The panel's overall control module is available with or without field bus interface for KNX or BACnet IP.

Integration to other sytems

Can integrate to WindowMaster control systems NV Comfort® and NV Advance® or to the building management system.

System Example

There can be many different ways to configure a system for a building. This image provides an overview of one possible scenario.

2 Smoke Zone System Example

Download Brochure

Would you like to read more about FlexiSmoke™?

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.

Read more
