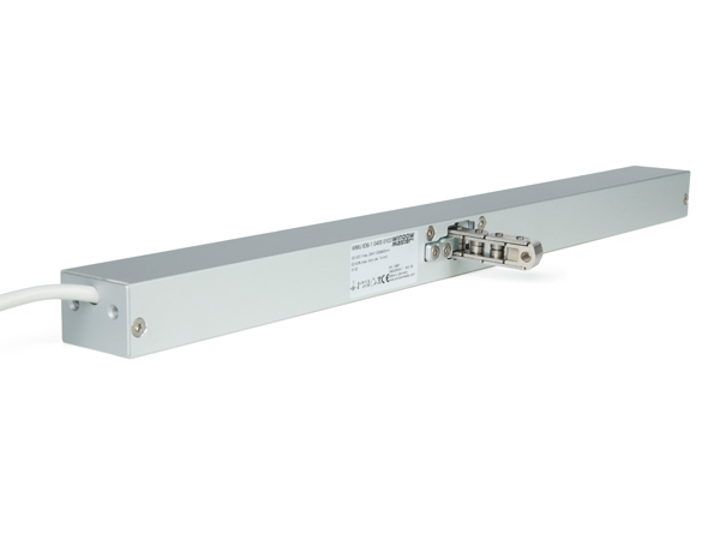

WMU 836 03

Chain actuator for VELUX window

  • Chain actuator for surface mounting.
  • For smoke and comfort ventilation.
  • For VELUX top hung, tilt-and-swing windows GPL and GPU from size M06 and VK from size 045.

Get a quote
WMU 836 03

About WMU 836 03

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

  •
Smoke ventilation

    Smoke ventilation

    The product is suitable for smoke ventilation and use natural driving forces for the efficient exhaust of smoke and heat

Product Details

Smoke ventilation chain operator for VELUX top hung, tilt-and-swing windows GPL and GPU from size M06 and VK from size 045.

The window actuator can be connected directly to the WindowMaster smoke ventilation control units WSC3xx and WSC 5xx.





Specifications

Technical specifications
Chain opening max. 600mm
Opening speed 11mm/s
Pressure force 300N
Tractive force max. 150N
Operating voltage 24 VDC
Current consumption 1,0A
Dimensions 667 x 34 x 47mm (W x H x D)
Colour Aluminium anodised (EV1)

Delivery includes

Actuator with 2m connection cable, motor bracket and chain bracket

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
