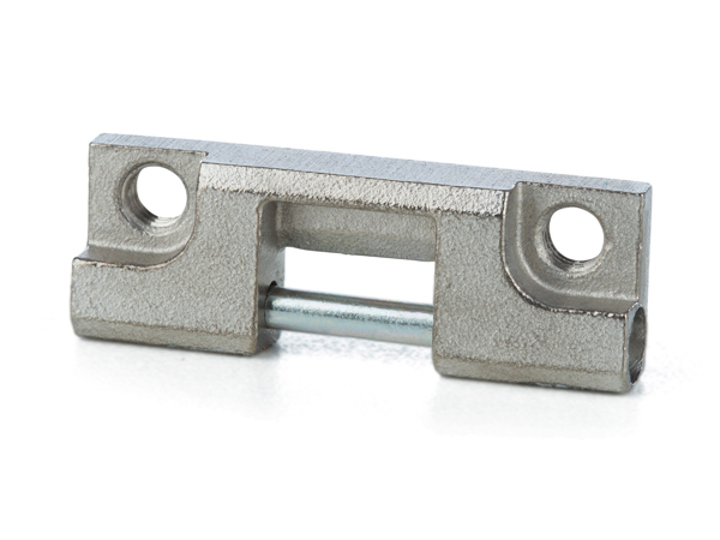

WAB 801 (WAB 909 0575)

Multi bracket

  • Multi bracket for attaching the chain
  • Used for surface mounted or integrated WMX actuators

Get a quote
WAB 801 (WAB 909 0575)

About WAB 801 (WAB 909 0575)

Main features

  • Natural ventilation

    Natural ventilation

    The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate

Product Details

For attaching the chain of surface mounted or integrated WMX operators by means of screws; for all windows.

M5 thread in the two mounting holes.

Dimensions: 40 x 14 x 6.5mm (WxHxD)
Material: Stainless steel

Specifications

Delivery includes

Multi bracket

Downloads

WAB 805+801+WMX 826/526   DWG drawing   PDF drawing
WAB 807+801+WMX 826/526   DWG drawing   PDF drawing
WAB 824B+801+WMX 826/526   DWG drawing   PDF drawing
WAB 829+801+805+WMX 826/526   DWG drawing   PDF drawing
WAB 801+841+WMX 826/526   DWG drawing   PDF drawing
WAB 801+845+WMX 826/526   DWG drawing   PDF drawing
WAB 801+826D+WMX 826/526   DWG drawing   PDF drawing
WAB 801+804+WMX 804   DWG drawing   PDF drawing
WAB 801+805+WMX 804   DWG drawing   PDF drawing
WAB 814Z+WAB 814A+WAB 801+WMX 814   DWG drawing   PDF drawing

Intelligent control of windows: MotorLink®

MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.

Read more
