NV Comfort® - NVC KNX A02
NV Comfort® - natural ventilation for up to 8 zones / rooms
- Controls natural ventilation in up to 4 respectively 8 zones
- Controls the radiators, sun screening and light in the zones
- With NV Manager™ enables log data for the zones
About NV Comfort® - NVC KNX A02
Main features
-
Natural ventilation
The product is suitable for comfort ventilation to ensure that the building’s users enjoy a comfortable indoor climate
-
KNX certified
The product is KNX certified and supports this BUS communication
Product Details
NV Comfort® controls façade and roof windows so that they automatically open and close by incremental amounts on the basis of individual fixed values for the desired room temperature and CO2 levels, as well as measurements of external temperature, rain and wind speed.
The overall operation on the installation is performed using the touch screen, where there are menues for the daily operation of both the building level and a zone-by-zone level, as well as menus for setting the operation parameters so that windows and any connected heating, mechanical ventilation, lighting and shading are controlled automatically.
NV Manager™ enables remote control NV Comfort® and log data (event log) for the zones.
To be used with NV Comfort® version 2.2.1.4 or newer.
For further information please read the product sheet "NV Comfort® Log and remote control".
Specifications
| Technical specifications - TOUCH SCREEN | ||
| Screen | 7'' LCD - Wide VGA touch screen with frame | |
| Size | Screen: Frame: |
185 x 126 x 52mm (WxHxD) 211 x 140 x 5mm (WxHxD), brushed anodised aluminium |
| Material | Plast housing with front surrounding in brushed anodised aluminium and adaptor | |
| Power supply | 120-230 VAC | |
| Technical specifications - NET ADAPTOR | ||
| Plug | Supplied with plug for Western Europa, UK, and US | |
| Cable lenght | 1.2m | |
Delivery includes

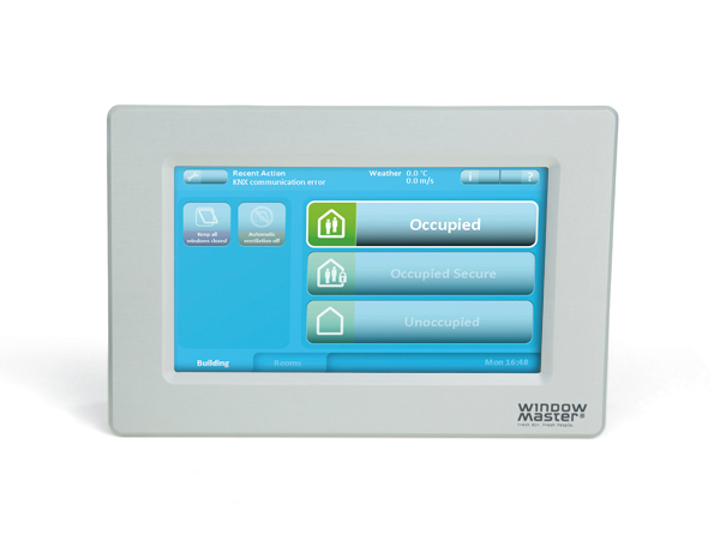

NV Comfort® touch screen with alu frame.
To be ordered seperately:
- software card NVC SC
- basic pack NVC BP KNX 11
- build on frame NVC A102 (but only if NV Comfort® is to be build-on)
Downloads
Product sheet
Installation instruction
Declaration of conformity
User guide
User guide, Using NV Comfort® for the first time (version 2.2.1.4)
User guide, Using NV Comfort® for the first time (version 2.1.0.17)
User guide, Using NV Comfort® for the first time (version 2.0.0.7 - 2.0.0.9)
User guide, Using NV Comfort® for the first time (version 2.1.0.2)
User guide, Using NV Comfort® for the first time (version 2.1.0.5)
User guide, Appendix A - Settings
ETS application description
ETS3/4 application
DPT Description
Remote controlling of NV Comfort® with VNC
Intelligent control of windows: MotorLink®
MotorLink® is a communication technology that enables 2-way control and feedback between window actuators and the Building Management System via the MotorController. All WindowMaster control systems are MotorLink® capable with many of our actuators. Click below to learn more and see related products.
Read more
